Aecooly Camperkit Cooling Pack

General Overview

• Product Name: Aecooly CamperKit Cooling Pack
• System Type: Modular Outdoor Cooling & Power System
• Core Unit: Smart Controller (OK01)
• Design: Magnetic modular “Cooling Pack” system
• Ecosystem: Compatible with Aecooly CamperKit modular accessories

Performance (Jet Fan Mod – OK01-F1)

• Motor Type: Three-phase brushless motor
• Max Fan Speed: 80,000 RPM
• Max Wind Speed: Up to 30 m/s (Turbo Mode)
• Speed Levels: 10 (5 Standard + 5 Turbo)
• Functions: High-pressure airflow, cooling, drying, dust clearing
• Power Input: Up to 60W
• Weight: ~139 g

High-Speed Fan Mod (OK01-F2)

• Airflow Type: Wide-angle cooling airflow
• Speed Levels: Adjustable (up to 5 levels)
• Power Consumption: ~5W
• Weight: ~143 g
• Use Case: Tent cooling, personal comfort

Smart Controller (OK01 – Main Unit)

• Battery Type: Lithium-ion
• Battery Capacity: 7500mAh (25.9Wh)
• Cell Configuration: Dual-cell (≈7000–7500mAh total)
• Display: LED screen (battery + speed monitoring)
• Input: USB Type-C (5V / 3A)
• Control: Physical button + digital interface
• Weight: 224.7 g
• Dimensions: 42 × 45.15 × 107.85 mm

Charger Mod (OK01-C1)

• Function: Portable power bank module
• Input: 14V ⎓ 3A (42W Max)
• USB-C Output: Up to 20W
• USB-A Output: Up to 18W
• Ports: USB-C + USB-A
• Weight: ~44.6 g

Durability & Build

• Water & Dust Resistance: IPX7 rated
• Material: Rugged outdoor-grade construction
• Connection System: Magnetic snap-on + secure pin interface
• Mounting Options: Magnetic base + hanging hook

Design & Portability

• Form Factor: Compact, modular, travel-friendly
• Weight (Controller): 224.7 g
• Ease of Use: Quick module swapping in seconds
• Expansion: Supports 10+ CamperKit modules

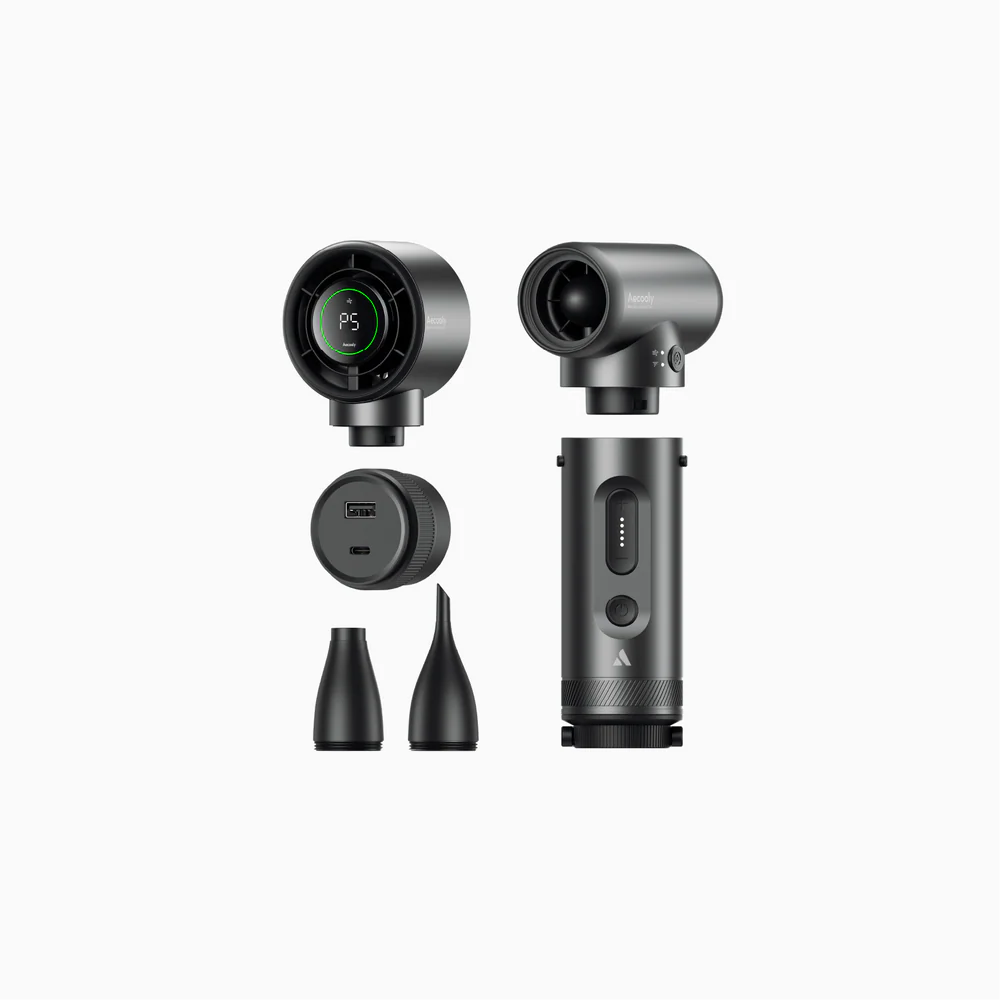

In the Box

• OK01 Smart Controller
• OK01-F1 Jet Fan Mod
• OK01-F2 High-Speed Fan Mod
• OK01-C1 Charger Mod
• Nozzle attachments

Key Features

• Extreme 80,000 RPM Jet Fan Performance: The primary Jet Fan Mod is powered by a high-speed three-phase brushless motor, delivering a massive 30 m/s wind speed capable of rapid gear drying, dust removal, and campfire boosting.
• Intelligent 10-Level Speed Control: The Smart Controller base features a precision digital interface allowing you to toggle between 5 standard levels for gentle breezes and 5 turbo levels for maximum high-pressure output.
• Rugged IPX7 Water & Dust Resistance: Engineered for the harshest environments, this kit is fully waterproof and protected against temporary immersion, making it the perfect “outdoor-ready” tool for rain or dust.
• Dual Cooling Module Strategy: The pack includes both the high-pressure Jet Fan Mod for intense tasks and the High-Speed Fan Mod, which is optimized for consistent, wide airflow to keep your tent or personal space comfortable.
• 2-in-1 Power Bank Functionality: The included Charger Mod transforms your controller into a 20W fast-charging station, featuring both USB-A and USB-C outputs to keep your smartphones and GPS units powered in the wild.
• Massive 7500mAh Smart Controller Base: The central hub houses a 25.9Wh high-density battery, providing long-lasting endurance for the fans and serving as the intelligent brain for the entire modular ecosystem.
• Seamless Magnetic Snap-On Connection: Utilize the Magnetic Connection system for effortless, tool-free module swapping, ensuring a secure fit and instant power transfer between the base and attachments.
• Real-Time LED Diagnostic Display: The Smart Controller features a built-in LED screen that provides instant feedback on battery percentage and active speed levels, ensuring you never run out of power unexpectedly.
• Ultra-Portable 224g Design: Despite its extreme power, the Smart Controller is exceptionally lightweight and compact, designed to fit easily into a pocket or side pouch of a hiking bag.
