General Overview

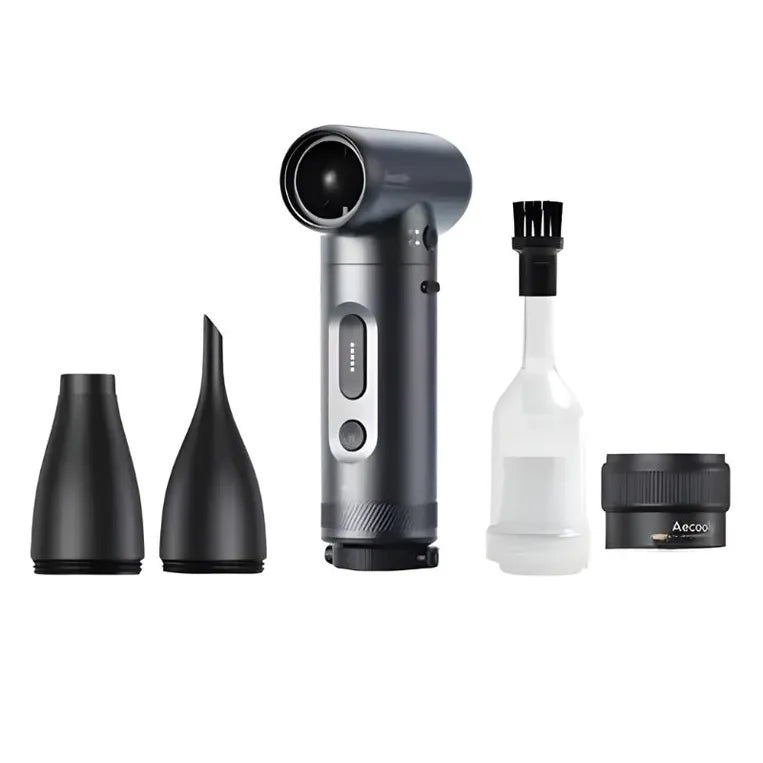

• Product Name: Aecooly Jet Fan Pack – Travel Camper Kit
• System Type: Modular Outdoor Cooling & Utility System
• Core Unit: Smart Controller (OK01)
• Design: Magnetic modular connection (CamperKit system)

Performance (Jet Fan Mod – OK01-F1)

• Motor Type: Three-phase brushless motor
• Max Fan Speed: 80,000 RPM
• Max Wind Speed: 30 m/s (Turbo Mode)
• Speed Levels: 10 (5 Standard + 5 Turbo)
• Power Input: 14V ⎓ 4.29A (60W Max)
• Weight: 139g
• Dimensions: 42 × 57.3 × 77 mm

Smart Controller (OK01 – Main Unit)

• Battery Type: Lithium-ion
• Battery Capacity: 7500mAh (25.9Wh, dual-cell system)
• Cell Capacity: 3500mAh × 2 (≈7000mAh total)
• Input: USB Type-C (5V / 3A)
• Output Port: OK-Port (modular connection)
• Weight: 224.7g
• Dimensions: 42 × 45.15 × 107.85 mm

Charger Mod (OK01-C1)

• Input: 14V ⎓ 3A (42W Max)
• USB-C Output:
  • 5V ⎓ 3A
  • 9V ⎓ 2.22A
  • 12V ⎓ 1.5A (20W Max)
• USB-A Output:
  • 5V ⎓ 3A
  • 9V ⎓ 2A
  • 12V ⎓ 1.5A (18W Max)
• Weight: 44.6g
• Dimensions: 45.6 × 45.6 × 42.3 mm

Durability & Build

• Water Resistance: IPX7 (water & dust resistant)
• Construction: Rugged outdoor-grade housing
• Connection System: Magnetic snap-on modular design

Portability & Design

• Form Factor: Compact and travel-friendly
• Weight (Controller Only): 224.7g
• Ease of Use: Quick attach/detach modules
• Use Cases: Camping, travel, cooling, drying, dust removal

In the Box

• OK01 Smart Controller
• OK01-F1 Jet Fan Mod
• OK01-C1 Charger Mod

Features

• Extreme 80,000 RPM Airflow: Powered by a high-speed three-phase brushless motor, the Jet Fan Mod delivers a turbo-level wind speed of 30 m/s, making it ideal for rapid gear drying, fire starting, and industrial-grade dust clearing.
• Intelligent 10-Level Speed Control: Customize your experience with 5 standard speed levels for gentle cooling and 5 turbo speed levels for maximum power, all managed through the Smart Controller’s digital interface.
• Rugged IPX7 Water & Dust Resistance: This elite durability rating ensures the device is protected against temporary immersion in water and total dust ingress, making it truly “outdoor-ready” for any climate.
• High-Capacity 7500mAh Smart Controller: The core unit houses a massive 25.9Wh battery, providing long-lasting endurance for the fan and serving as the intelligent command center for all compatible modules.
• Seamless Magnetic Connection: The Magnetic Snap-On system allows for effortless attachment and detachment of modules, ensuring a secure fit while allowing you to swap between fan types in seconds.
• Advanced Modular Ecosystem: The Jet Fan Pack is fully compatible with the broader CamperKit system, allowing you to expand your gear with lighting, pumps, and emergency alarms as your needs grow.
• Ultra-Portable & Lightweight: Weighing only 224.7g, the Smart Controller is designed for maximum portability, fitting easily into a side pocket or travel bag without adding unnecessary weight.
• High-Speed USB-C PD Charging: Equipped with a DC 5V/3A Type-C input, the kit recharges quickly, ensuring you spend less time at the outlet and more time on your adventure.
• Versatile Multi-Purpose Utility: Beyond personal cooling, this kit is an essential tool for cleaning electronics, inflating air-filled products, and boosting campfire combustion in outdoor settings.
